Instrumentation

Pots and siphons

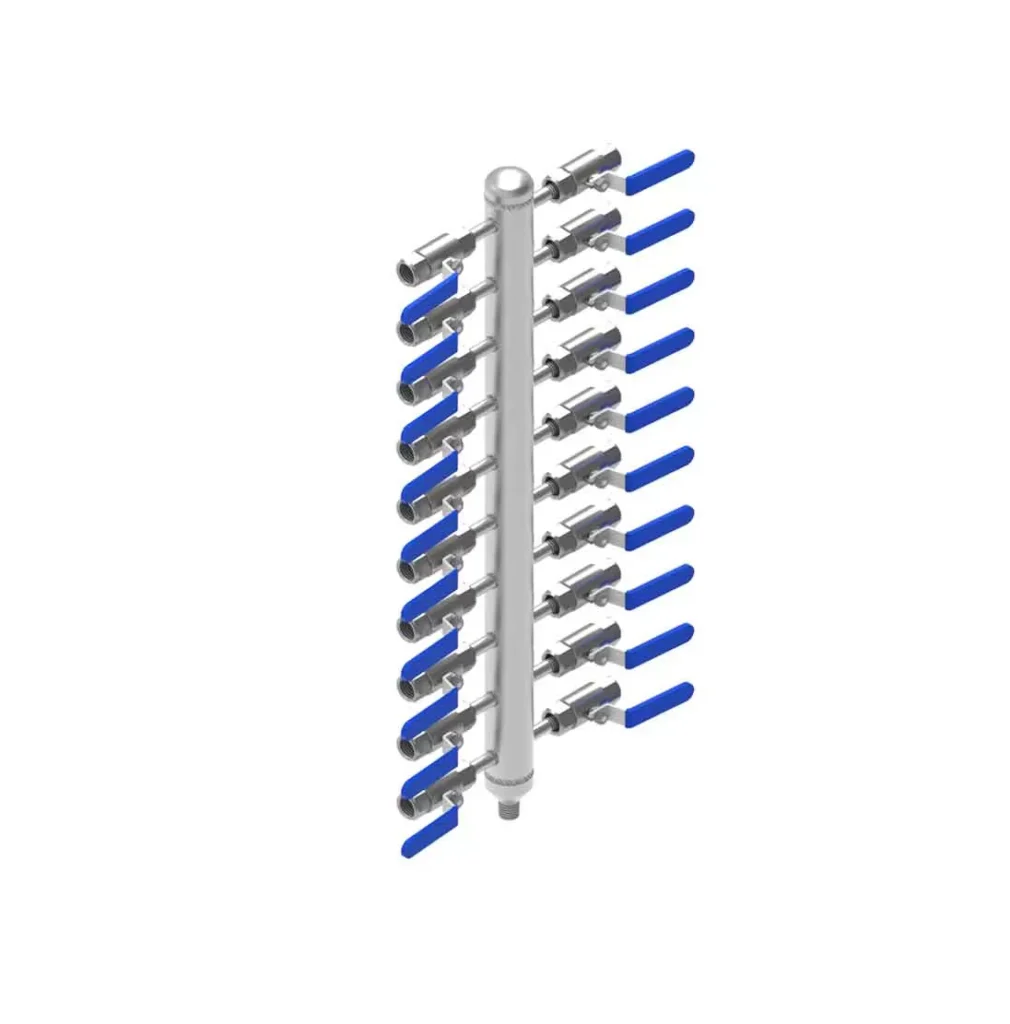

AIR FEED HEADER BDA

It is designed to distribute air, gas, nitrogen or any kind of fluid from
compressor to actuators on pneumatic instruments (pressure controllers,
steam flow meters, valves positioners). The air distribution manifolds are
designed to be used with air and can be supplied with a series of ball valves
lockable on opposite sides, right side or left side only to prevent unauthorized
access. Typical industry/application: Oil and Gas, Chemical, Petrochemical,
Power Plants, Refineries and other process industries.

More information

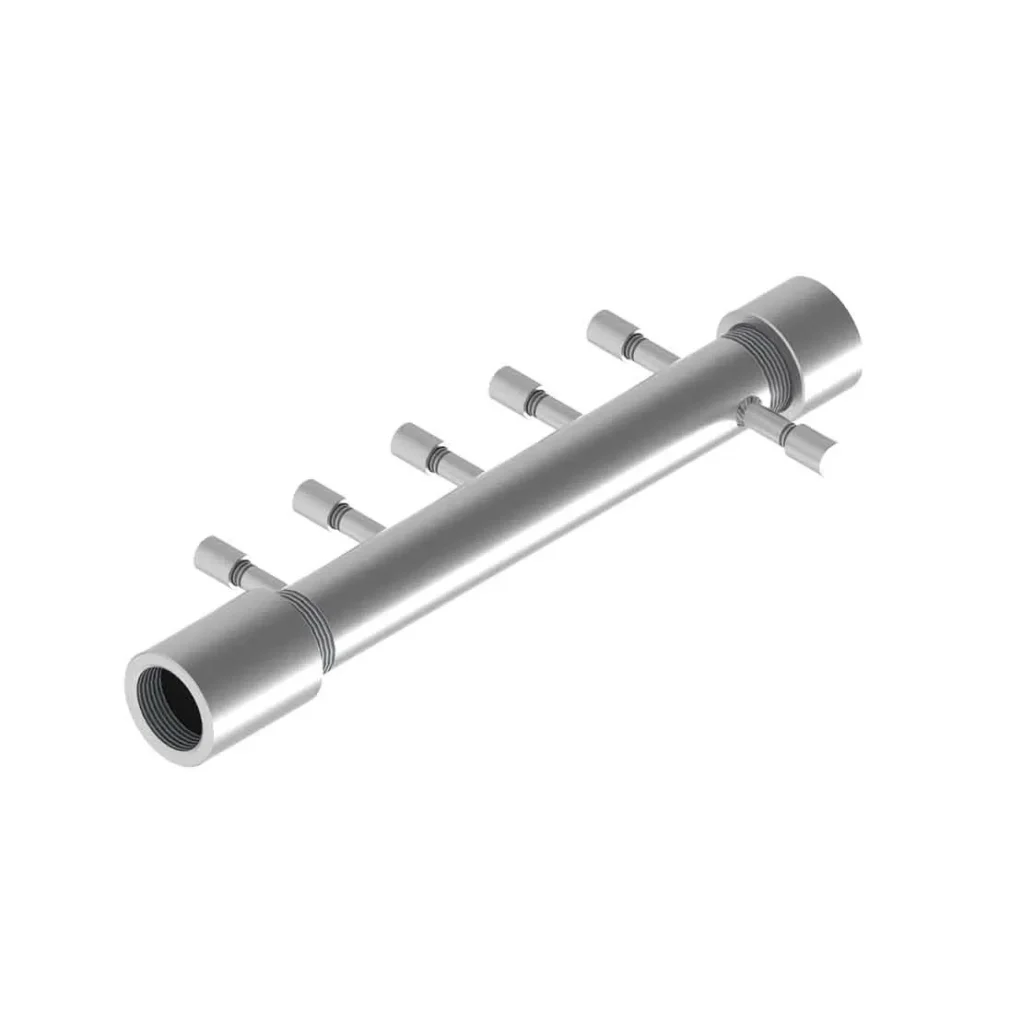

AIR FEED HEADER BDE

It’s a compact design which utilises needle valves (up to 12 valves
maximum), maximum operating pressure 10.000 PSI. It’s recommended
where space saving is needed. Standard configuration: stainless steel
material and NPT connection. Applications/Sectors: Air & Steam, O&G,
Petrochemical, Chemical. We are showing on this page just the standard
types.

More information

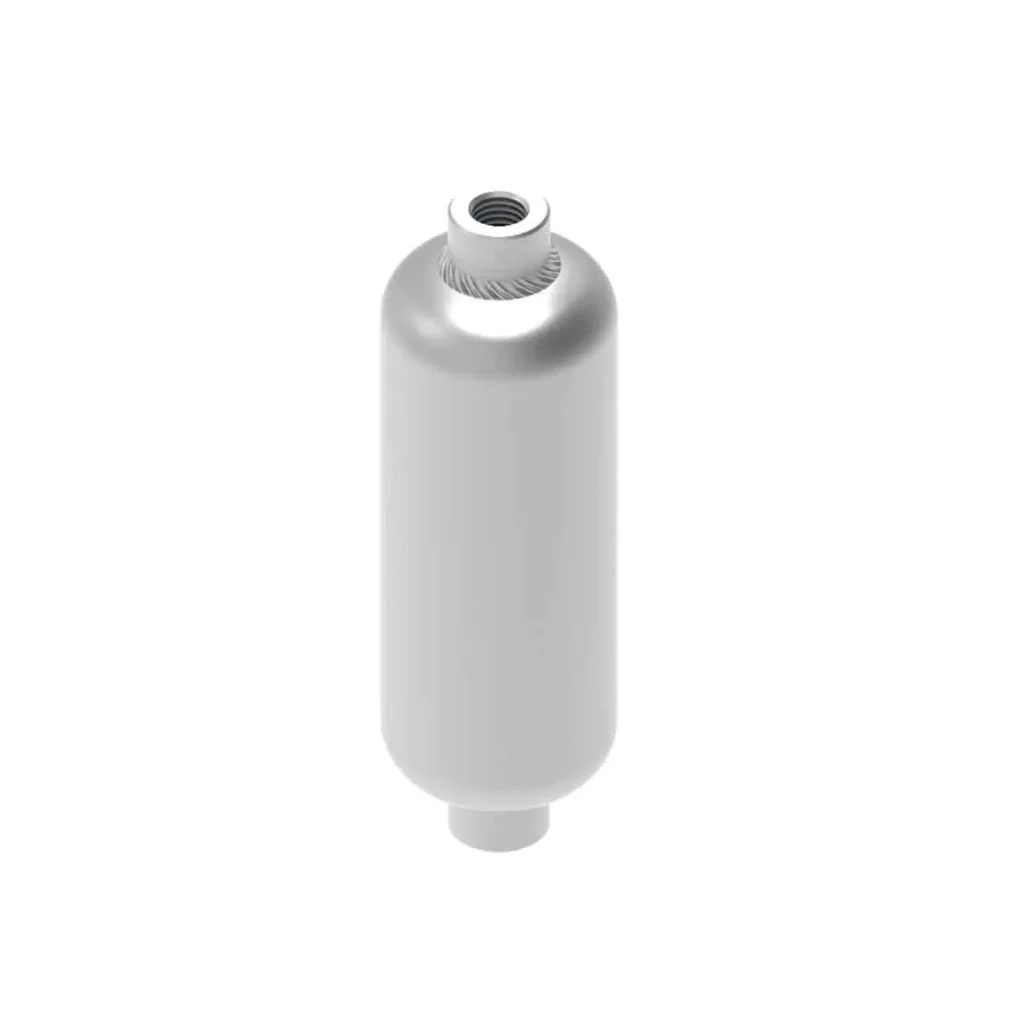

CONDENSING AND SEAL POT

It is designed and employed to trap any foreign material from the pipeline
preventing damages to instrumentation components (it’s largerly used in
steam metering line to cool down steam and or liquids). Condensate Pots are
designed in accordance with ASME DIV 1 and produced in ASME coded
workshop. They are realised from pipe, with hot forging caps without any
circumferential welds. Installation can be either vertical or horizontal
according to customer’s request and specification. Typical
industry/application: Oil and Gas, Chemical, Petrochemical, Power Plants,
Refineries and other process industries.

More information

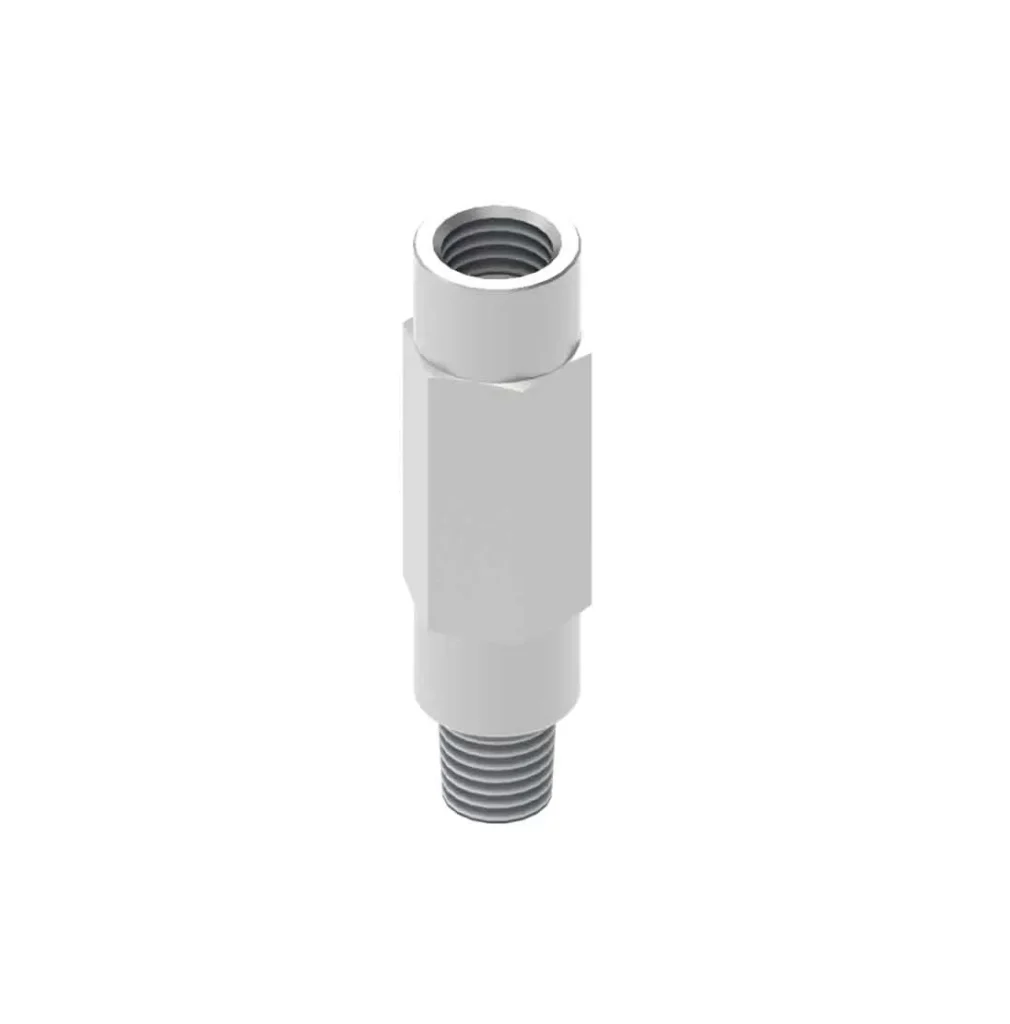

GAUGE SIPHONS

Bar stock siphons are used between pressure gauge and pressure traps to
prevent a direct contact between steam and the instruments. It’s realized in
different shapes in order to satisfy customer’s requirements according to
specific field/plant design. We are showing on this page just the standard
types.

More information

“SP” separation and condensate pots are utilized for handling dense and corrosive fluids, as well as serving as vessels to separate liquids and prevent direct exposure to instrumentation. In vapor measurement applications, these pots collect condensate and help maintain a consistent liquid head at the instrument. Standard connections for these pots include 1/2″ NPT-F and 1/2″ SW.

The ‘BDA’ and ‘BDE’ air distribution pots are designed to centralize multiple outlets within air distribution systems, and they also facilitate condensate drainage.

Syphons are incorporated into steam measurement lines to shield instruments from direct contact with steam, while also providing effective thermal dissipation to protect gauges from overheating.

All of these components are manufactured from 1/2″ seamless pipe in various wall thicknesses (SCH 40, SCH 80, SCH 160) and in materials such as A106 Gr.B and AISI 316. Typical coupling options include 1/2″ male and/or female (NPT, PE, SW).
