Instrumentation

Connectors

LET-LOK® Tube fitting

The LET-LOK® Tube fitting is a mechanism used both to seal and to grip tubing. The mechanical advantage and geometry of this kind of fitting produces a leak-tight assembly.

Single ferrule fittings

1/16” Through 1”

ONE-LOK® is designed to provide leak-proof, secure connections that can withstand high pressure, vibration and vacuum applications. To this end, ONE-LOK® tube fittings are made up of three parts that are precision engineered and machined: body, ferrule and nut.

Instrument pipe fittings

The HAM-LET Pipeline range of connectors is manufactured for typical applications in chemical and petrochemical processing plants, as well as oil, gas and power generation industries.

37° Flare Fittings

1/8” To 1½”

If necessary, see SAE Standard J514 for a complete list of dimensions. NPT Tapered Pipe Threads meet the requirements of ASME/ANSI B.I.20.1.

Orbital Weld and Metal Gasket Face Seal Fittings

High-quality, specially manufactured fittings for High Purity and Ultra-High Purity applications for the semiconductor, biotech, and pharmaceutical industries.

Ultra Vacuum Fittings for ultra vacuum systems

Helium leak tested to 4X10-9 ATM.cc/sec and maximum temperature: 242°C. All metal parts are 316 Stainless Steel, O-ring – Fluorocarbon FKM. Full range of sizes from 1/4” to 1”

Instrument Weld Fittings

Standard material is 316L stainless steel and is in accordance with ASTM A479 and ASTM A276. 316 / 316L Stainless steel SHAPED items are manufactured from material in AAccordance with ASTM A182.

Flange Adapters

NPT Male / Female fittings up to 2”. One piece not welded. Flange meets ASME, DIN, EN, JIS

Vent Protector Fittings

The Vent Protector Fitting (VEP) is used to protect tubes that are exposed to atmospheric pressure, instruments that are open to atmospheric pressure and every tube outlet that is open to atmospheric pressure.

Excess Flow Valves

Excellent for Automatic Safety Shutoff in a wide range of areas: Fuel systems, toxic Media Systems, gas Systems, valued Media Systems and hydraulic & pneumatic systems. MAWP 6000 psi (413 bar), MAWT 400°F (204°C), Variable connection sizes (1/8 to 1/2» & 6 to 12mm)

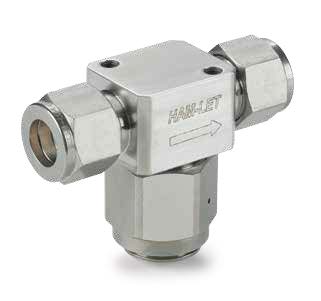

T-Type & In-Line Filters

The H-600R Series is a T-type filtration device, which will protect system components from fluid particles and contaminants.
